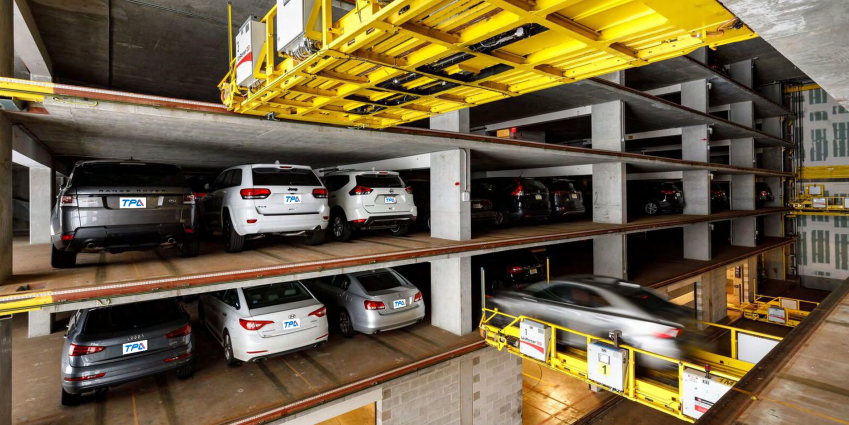

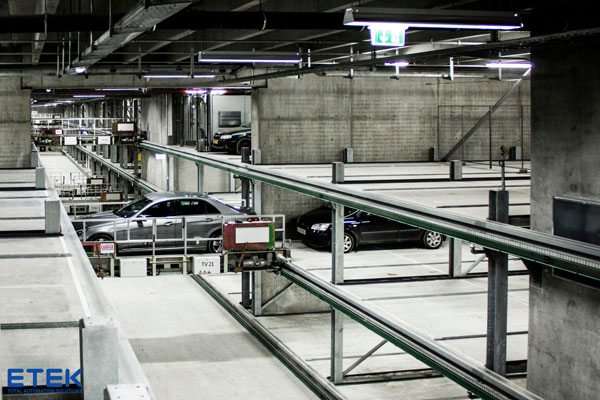

AUTOMATIC CAR MOVING PARKING SYSTEM (ROBOTIC)

1. Describe Automatic Car Moving Parking System (Robotic)

• Optimal system for large-scale basements.
• Fast pick up speed.
• Manipulate the car and store the car by facial recognition.

2. Technical specifications of Automatic Car Moving Parking System (Robotic)

2.1. Features Robotic Parking Systems

– System: Programmable and designed by ETEK
– Power supply: AC 380/400/420V. 50/60Hz
– Control system
+ Speed control: Inverter
+ PLC sequence control
+ Operation interface: Touch screen, magnetic card and facial recognition (AI)
– Available vehicle sizes
+ Length: 5,150mm*
+ Width: 2,150mm*
+ Height: 1,550mm/1,900mm*
+ Total weight: 2,200kg/2,800kg*

2.2. Technical Specifications of the Robotic Parking System

1. Lifting machinery
– Traction engine: 15 – 22 Kw
– Speed: 45 ÷ 60m/p Max
2. Vehicle shifting mechanism
– Gearbox motor: 1.5 – 2.2 Kw
– Speed: 40 ÷ 60m/p Max
3. Robot
– Gearbox motor: 3 phase x 0.75 Kw
– Speed: 40m/p Max
4. Automatic door
– Dimensions (WxH): 2500mm x 2100mm*
– Open type: Slide up or slide sideways
– Motor: 0.2Kw – 4P
– Speed: 20m/p
